Funnel
Product Description:

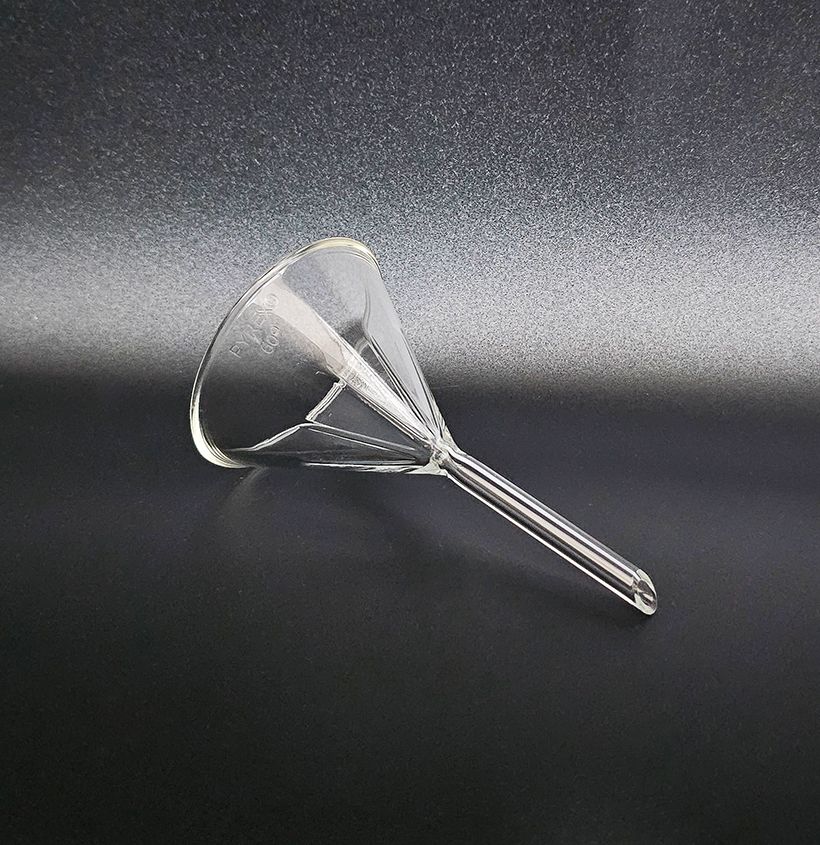

These PYREX fluted funnels have a strong beaded edge and a short stem. The funnels are fabricated from blanks formed to a 60° angle and have depressed inside flutings further decreases filtering time. Stem O.D. is 8mm.
Component Materials: Type I Class A - Low-Expansion Borosilicate Glass, per ASTM E438 (Standard Specification for Glasses in Laboratory Apparatus)
Autoclaving:
This product will withstand repeated standard autoclave cycles of 121°C at 15 psi for 15 minutes.
Heating and Cooling:
This product is designed for heating by hot plate, flame, oven, microwave or heating mantles. In normal service it can be heated many times to 230°C. It can be heated one time to 490°C in extreme service. This product can be cooled to -230°C. DO NOT plunge product directly into a liquid coolant. Place the product in the vapor phase of the liquified gasses for slow cooling prior to immersion in the coolant.
Specification:
|
Product Number |
6180-50 |
6180-65 |
6180-75 |
6180-100 |
|
Brand |
PYREX |
PYREX |
PYREX |
PYREX |
|
Funnel Style |
Fluted |
Fluted |
Fluted |
Fluted |
|
Height |
108 mm (approx.) |
121 mm (approx.) |
139 mm (approx.) |
190 mm (approx.) |
|
Stem Length |
65 mm (approx.) |
65 mm (approx.) |
75 mm (approx.) |
100 mm (approx.) |
|
Stem Outer Diameter |
8 mm (approx.) |
8 mm (approx.) |
8 mm (approx.) |
9 mm (approx.) |
|
Top I.D. |
50 mm (approx.) |
65 mm (approx.) |
75 mm (approx.) |
100 mm (approx.) |
